Basic Setup Guide LifeLynk Version

Please refer to the attached document for instructions on how to modify the settings to achieve a basic operational setup.

LifeLynk Basic Set-up

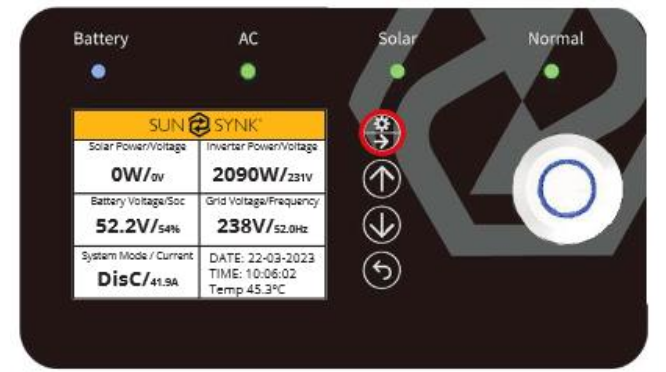

Step 1: Access the settings screen

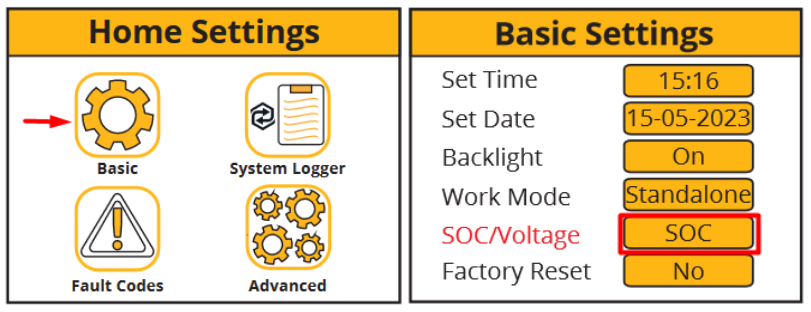

Step 2: Change the battery mode to SOC

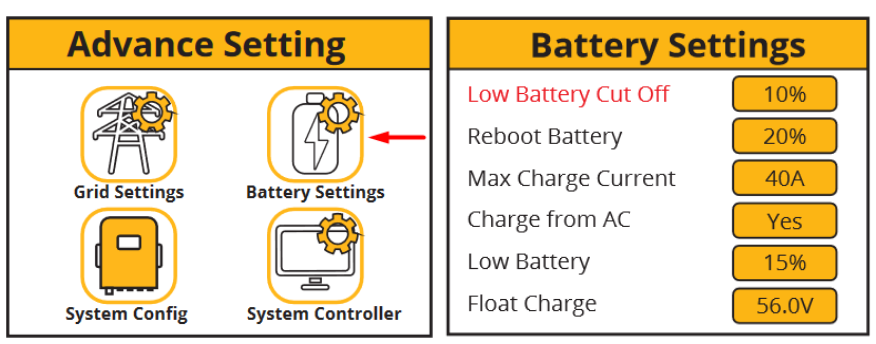

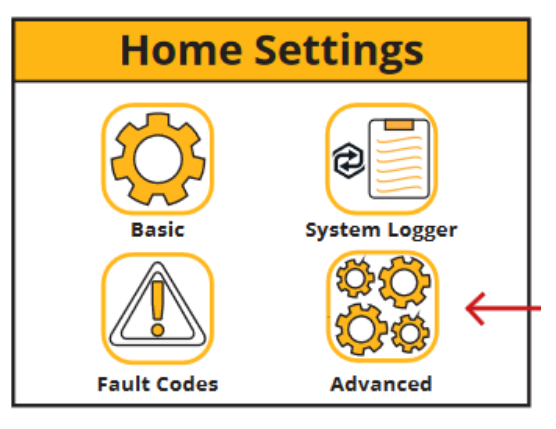

Step 3: Access the battery settings and adjust them

Please adjust the maximum charge current according to your system configuration. If external batteries are connected, please increase this value accordingly.

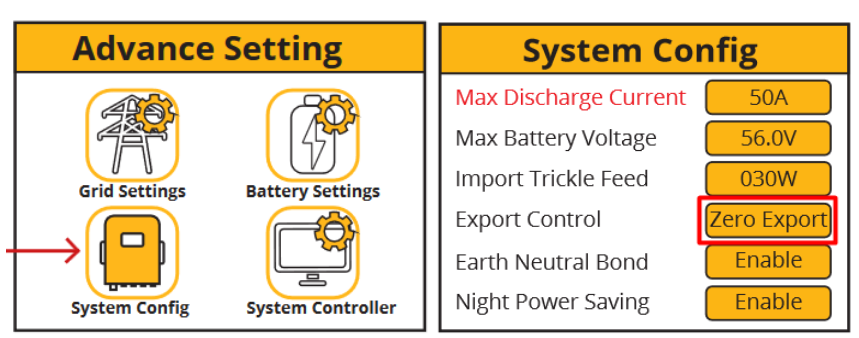

Step 4: Access System Config and change the Export control to “Zero Export”.

This mode function allows the inverter to export power to the home load via the “GRID” connector and power the essential load connected to the “LOAD” connector simultaneously. When zero export is ON, the inverter will export energy to the grid.
The maximum power will not exceed the total load power of the grid.

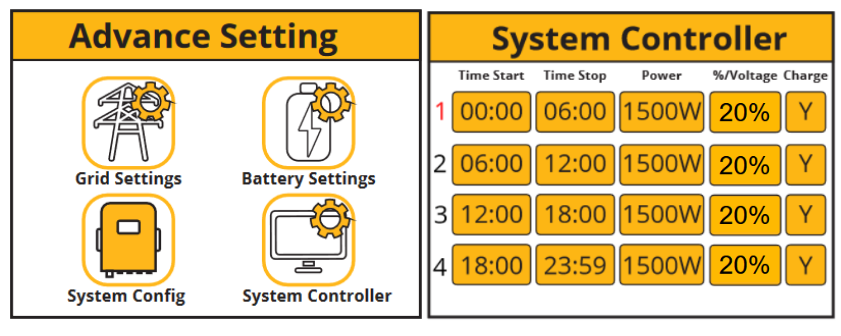

Step 5: Access System Controller and adjust the Timers/SOC accordingly

Note that in this case the batteries will charge from excess solar and discharge down to 20% to help cover the load when the PV is not enough and the grid will prevent the batteries from discharging below that.
